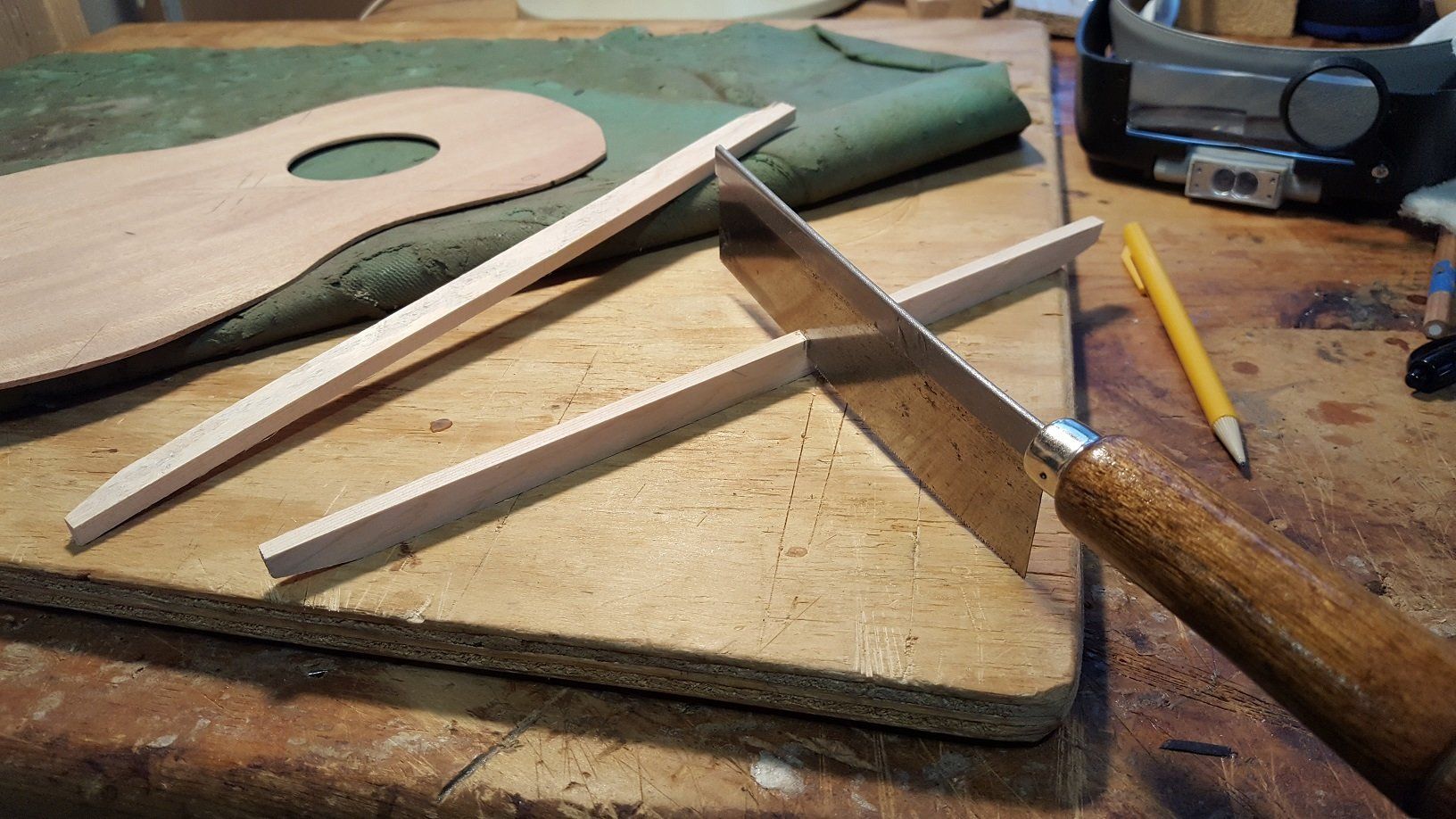

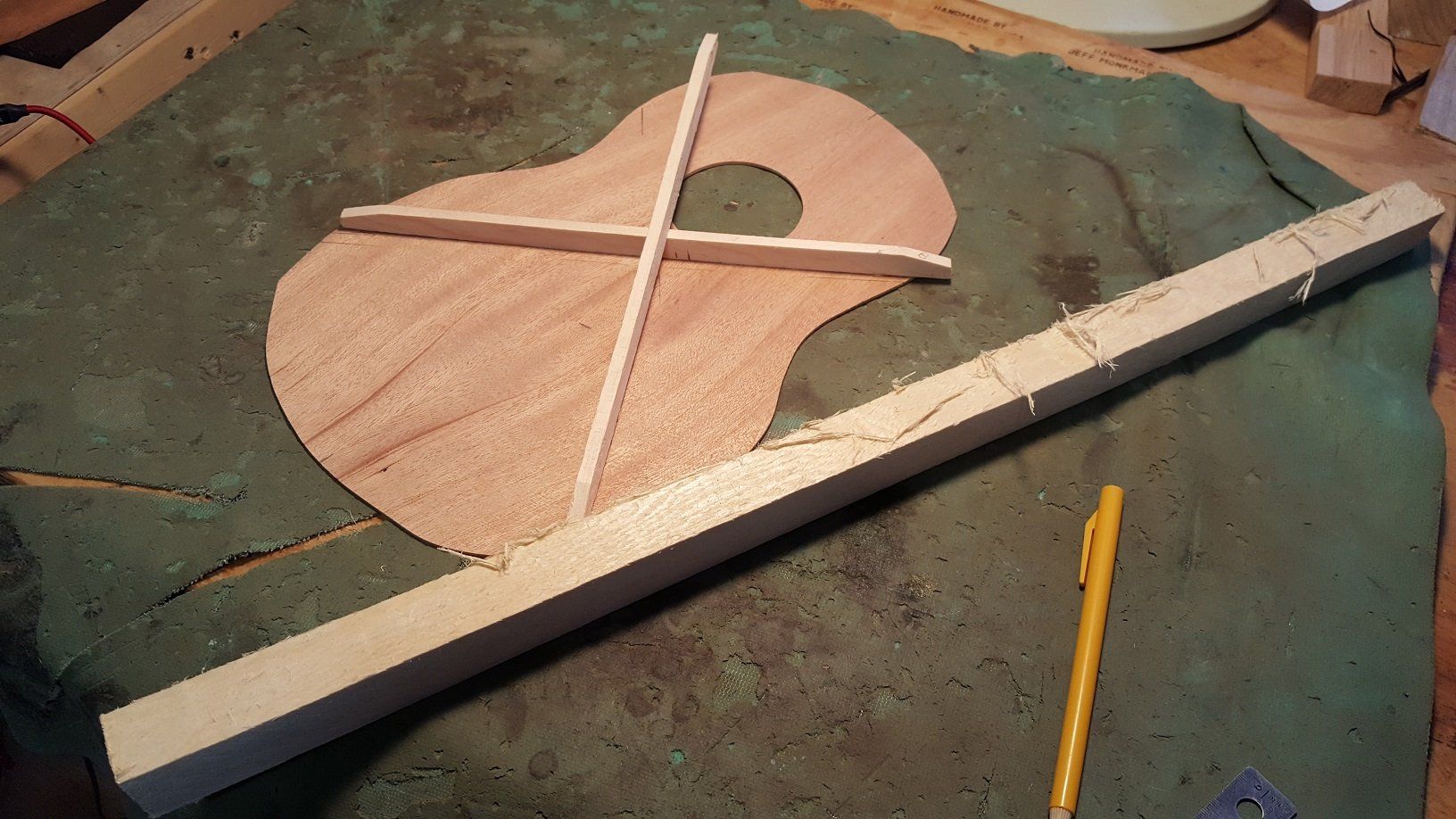

The X braces have a small radius which gives the top a slight dome shape to add strength.

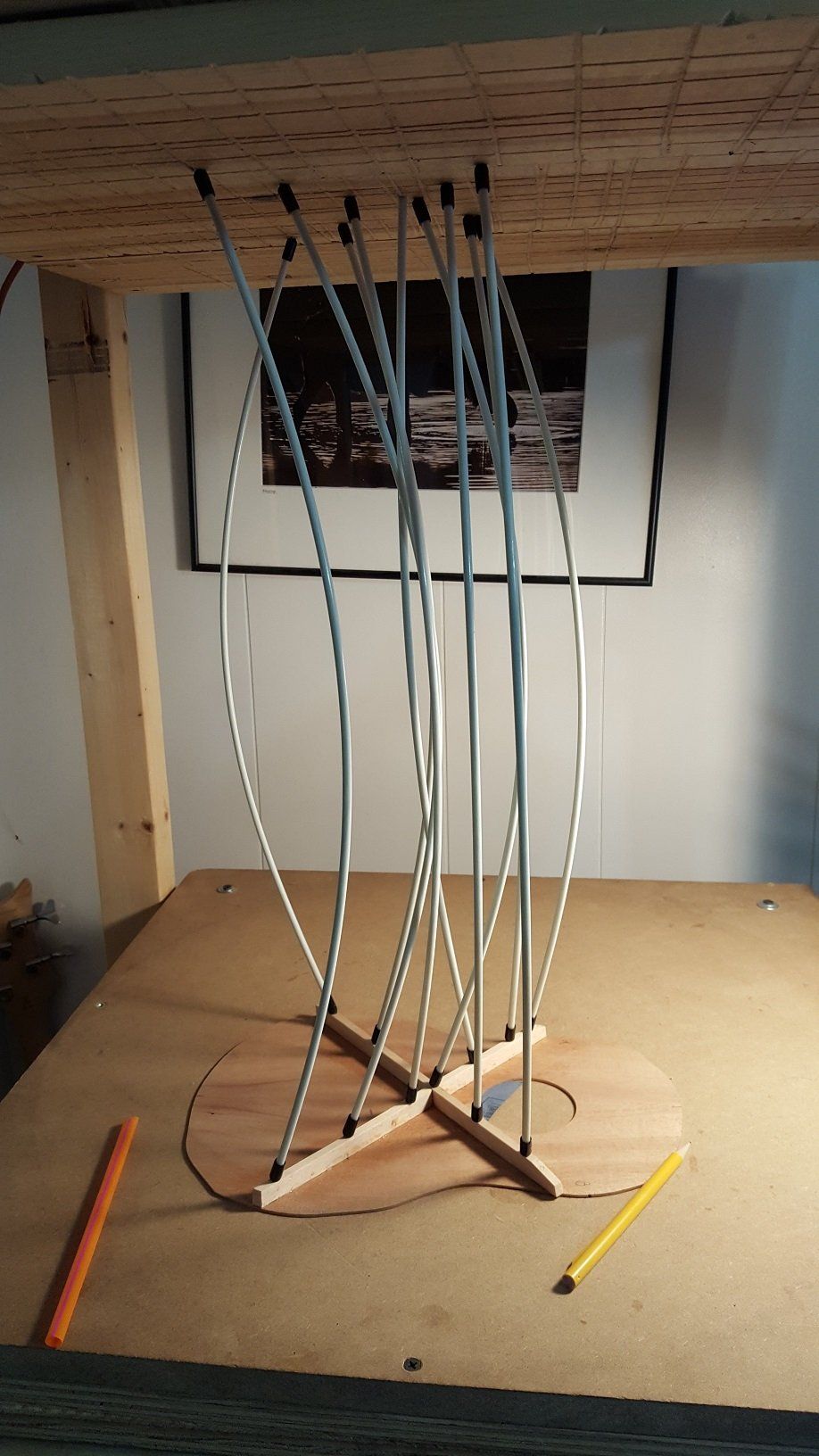

Clamped X braces. Hot hide glue

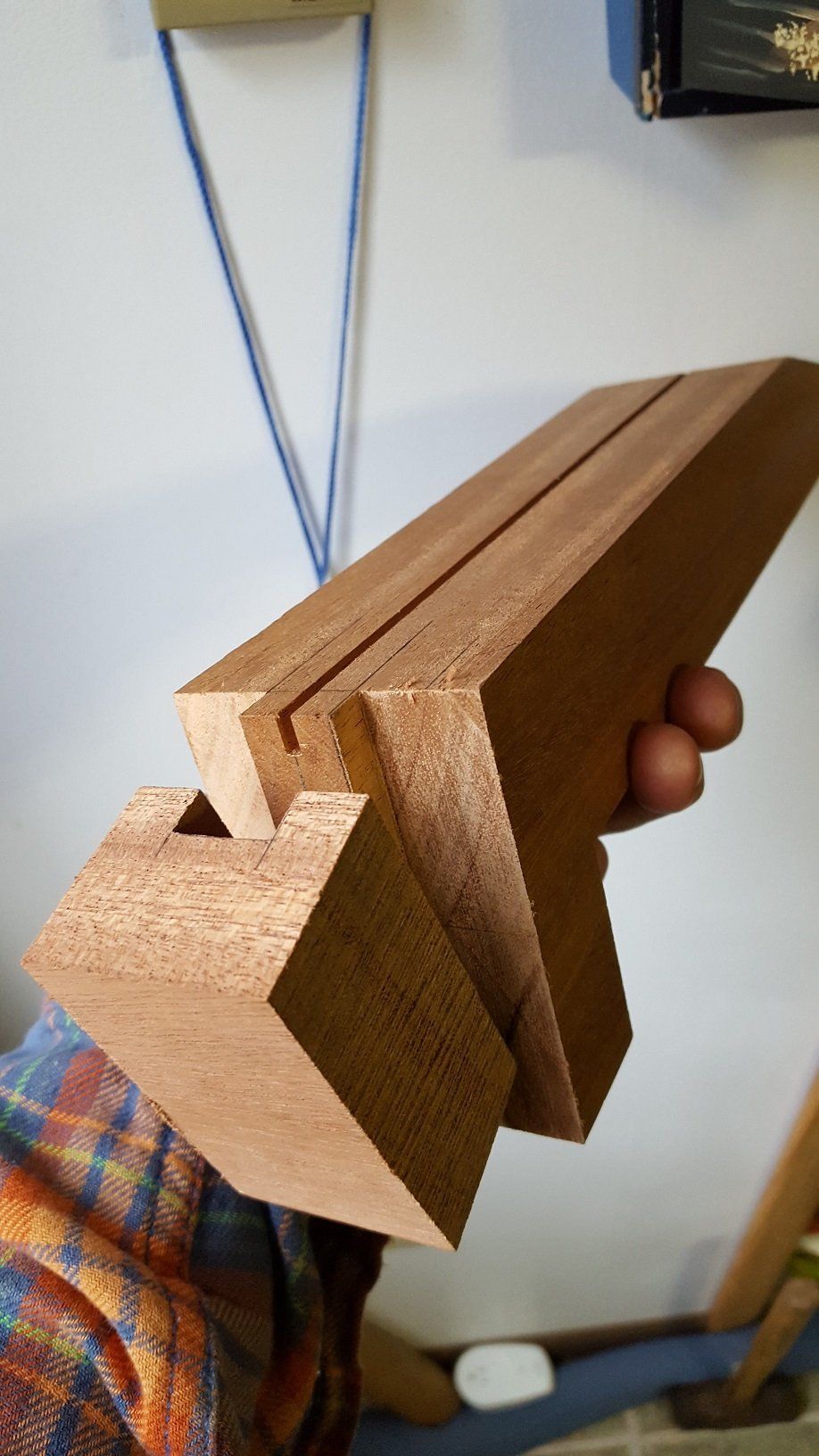

Mahogany neck and neck block

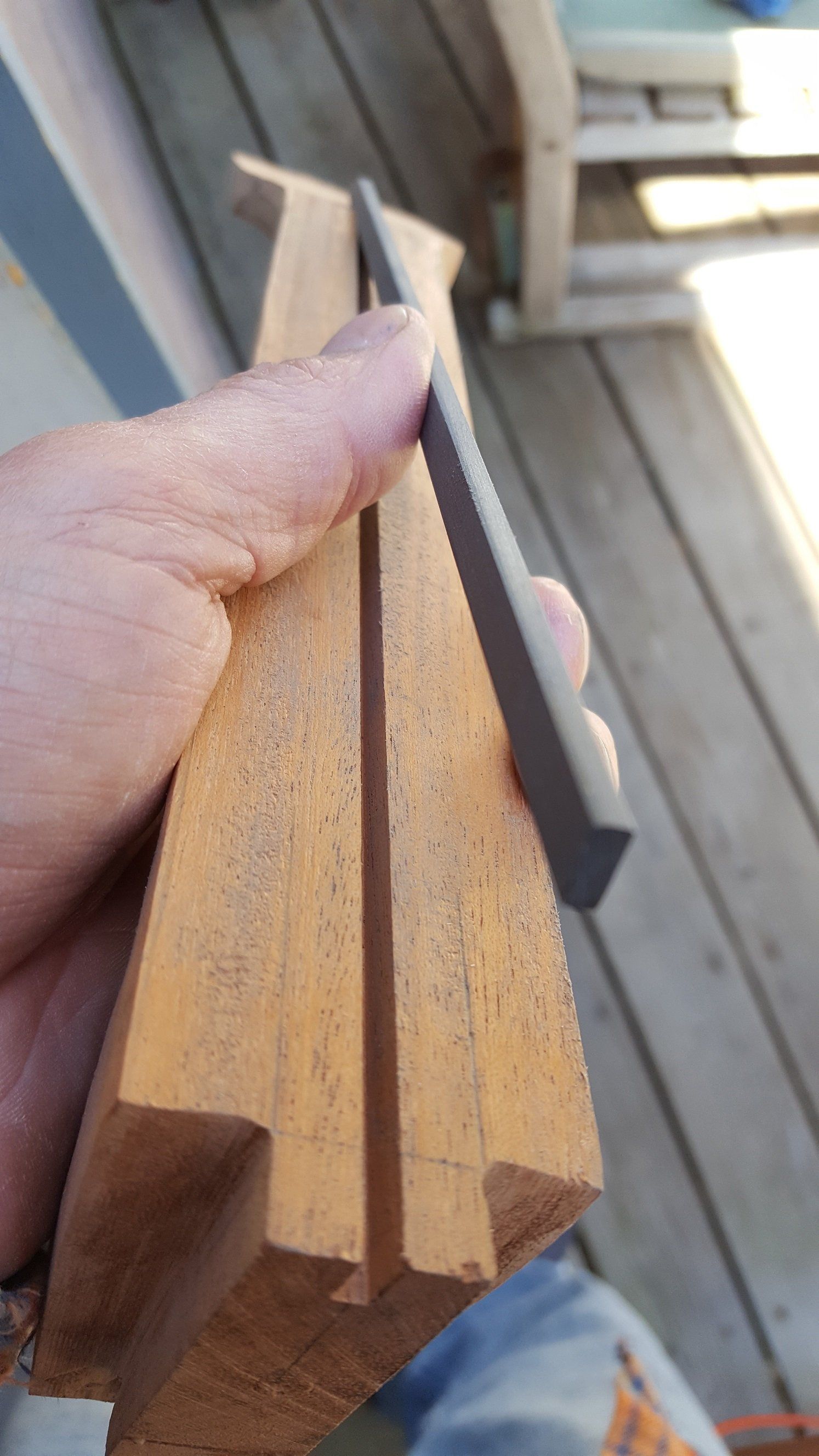

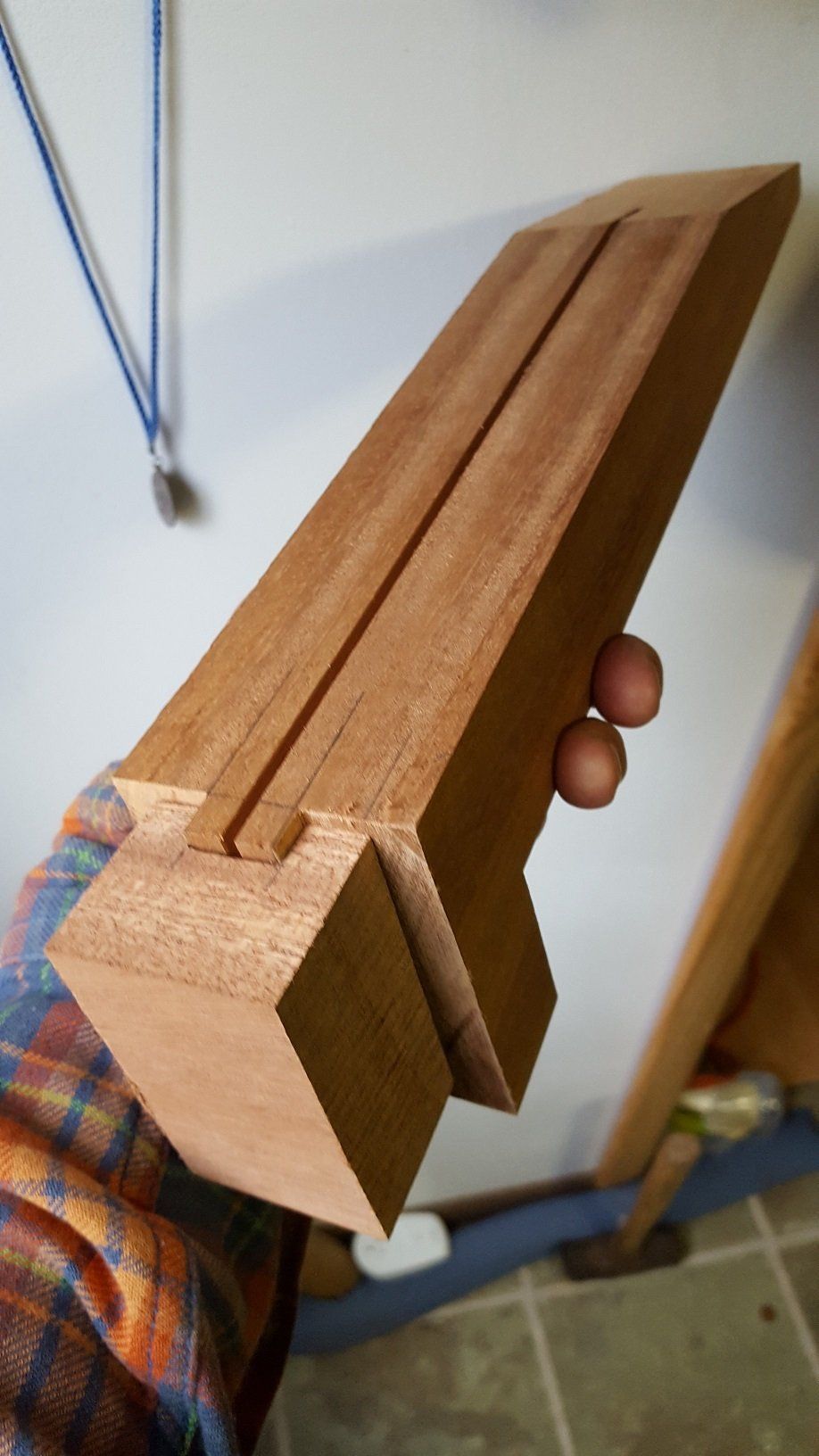

carbon fiber neck reinforcement
cuts are made on a table saw

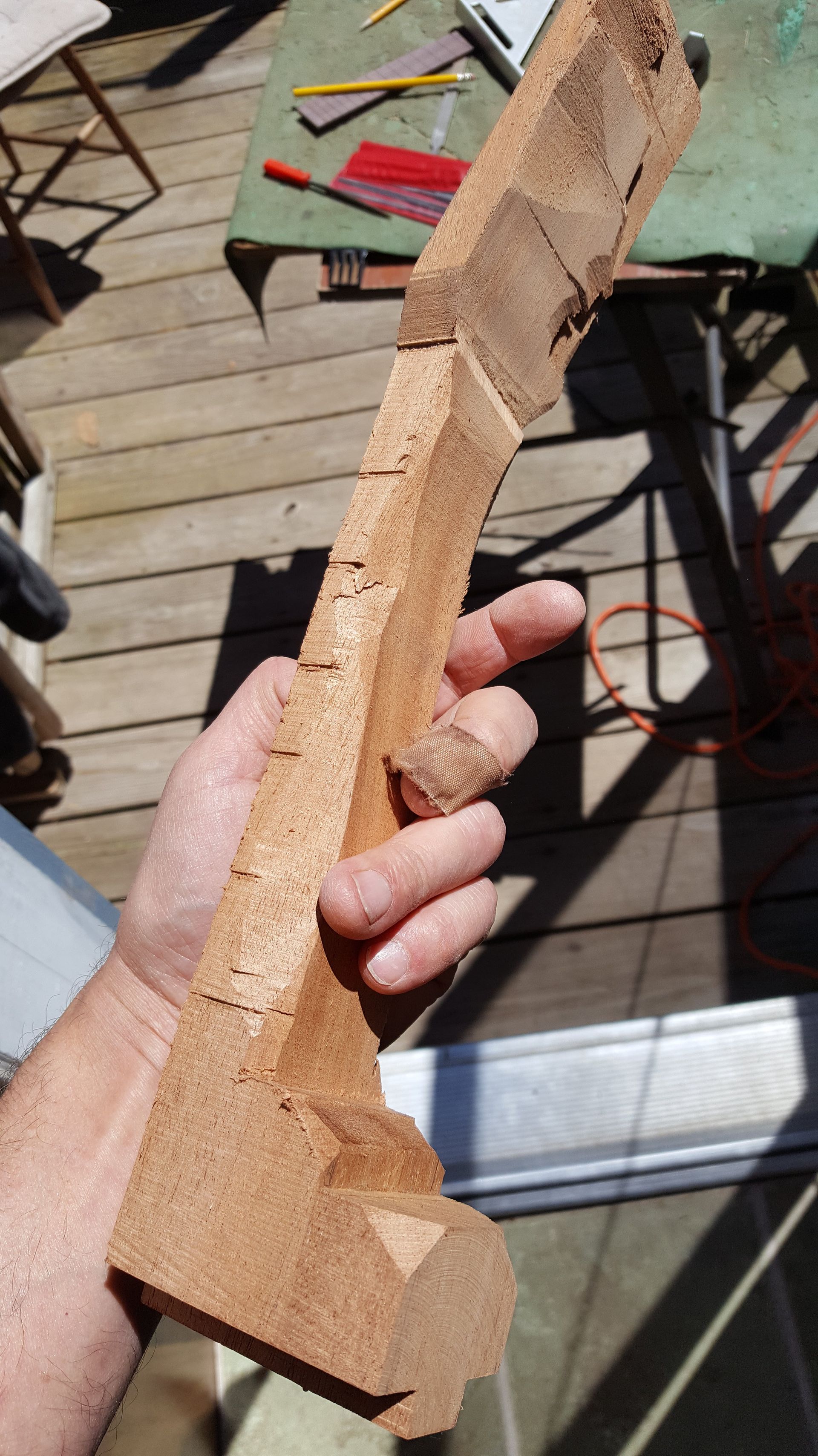

Rough cut on the band saw. Then on to the belt sander then rasps.
Monkey Pod. Back and sides

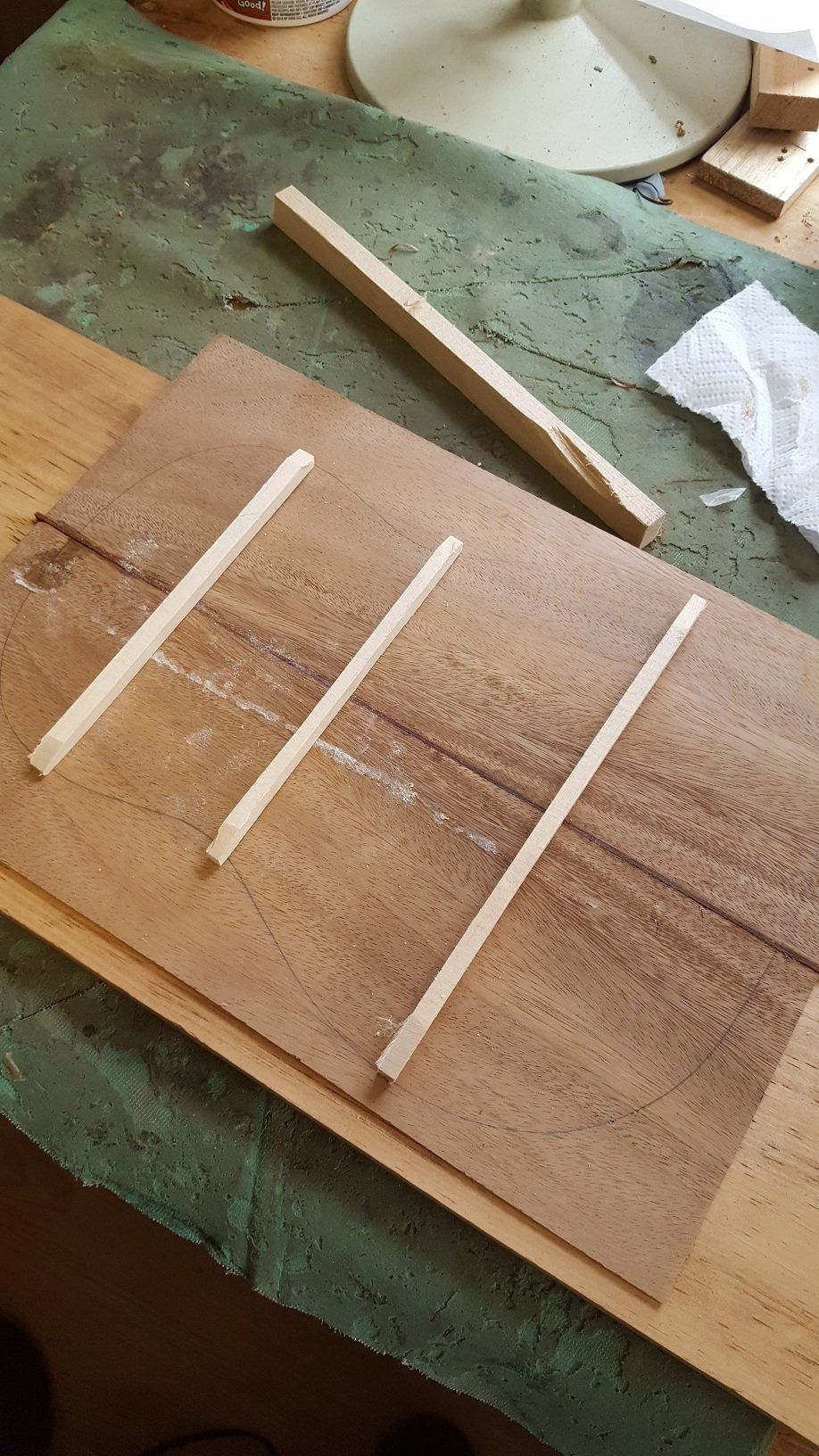

Rough back bracing

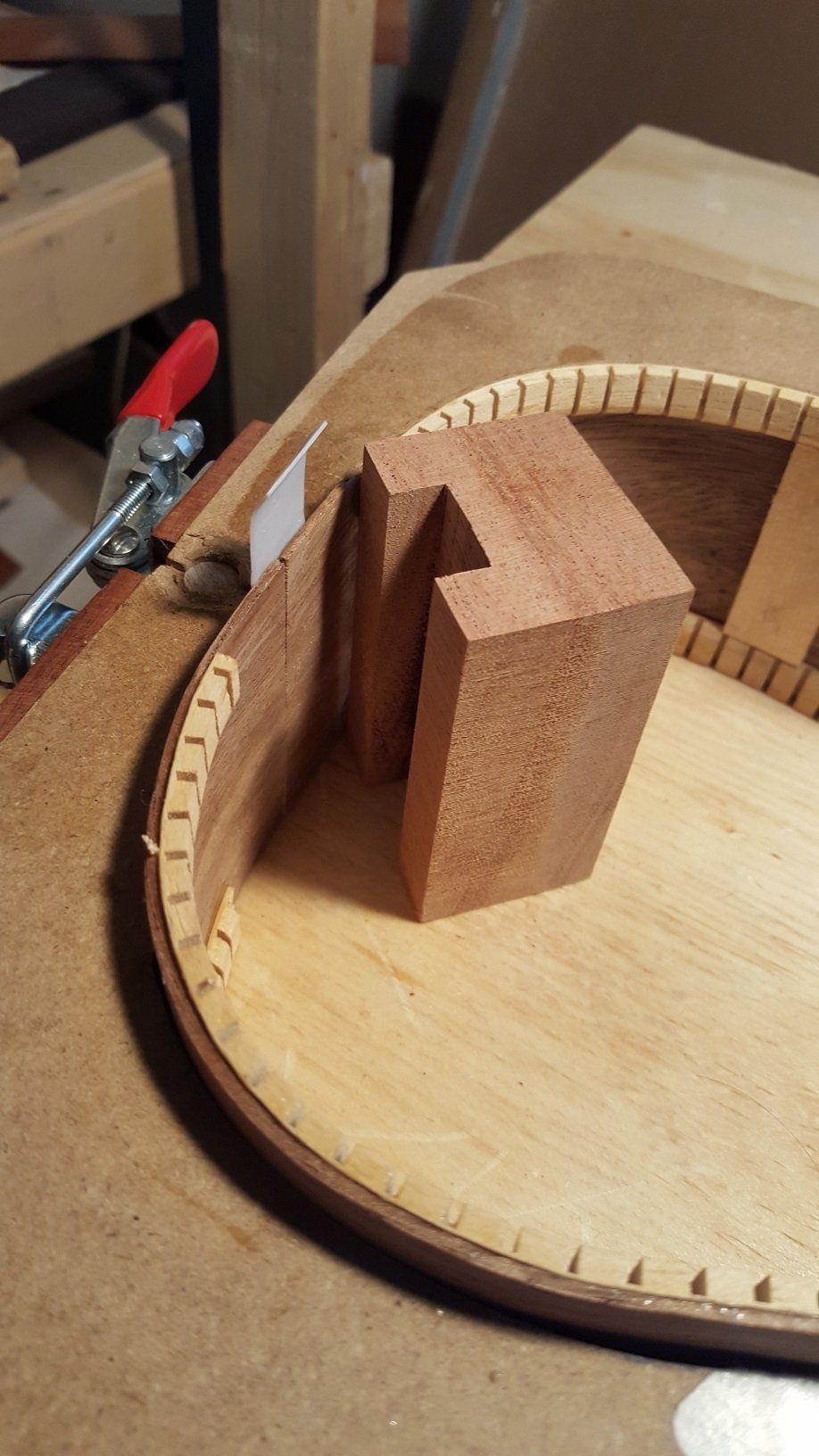

Neck block

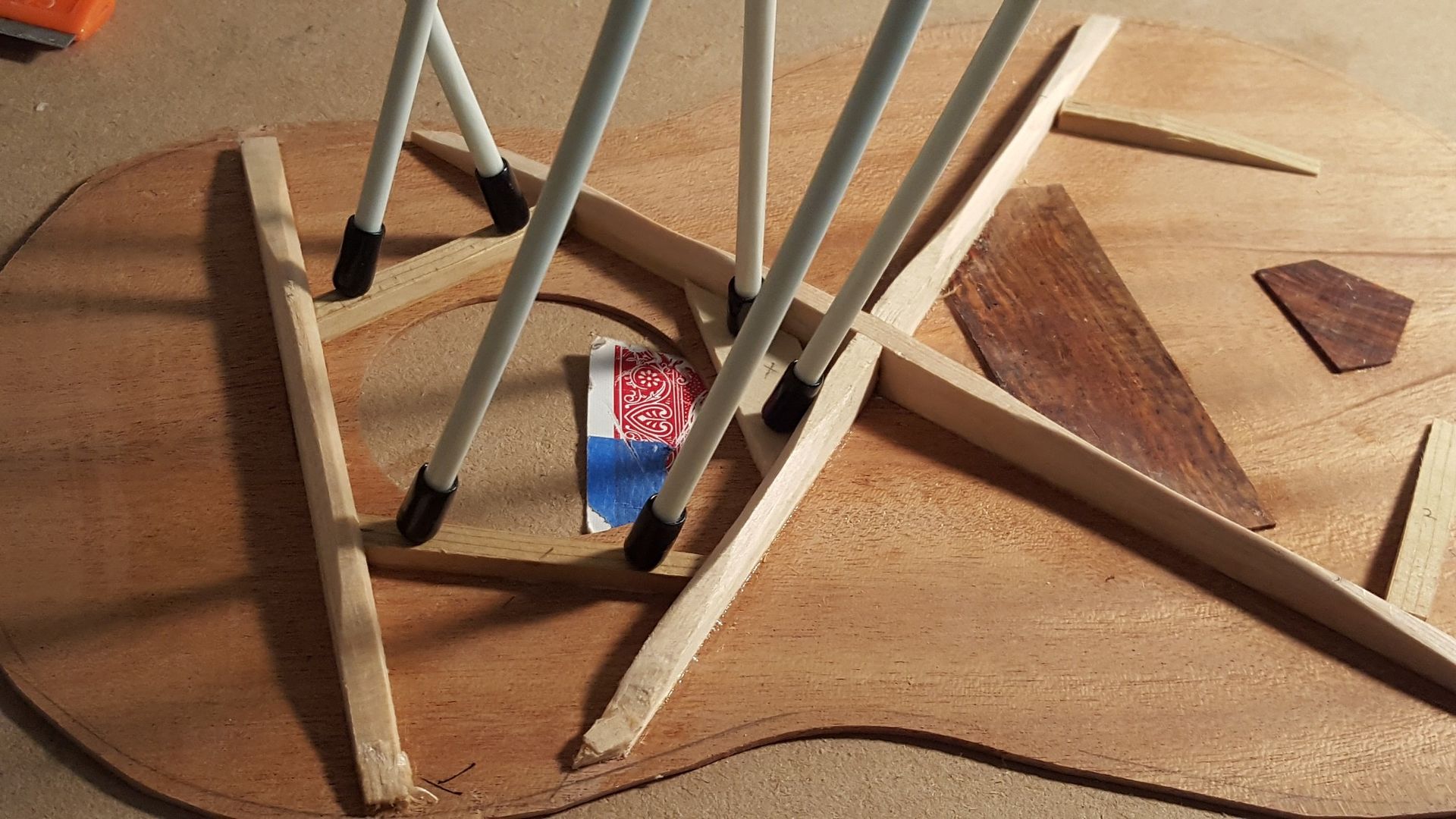

More top bracing in the clamp

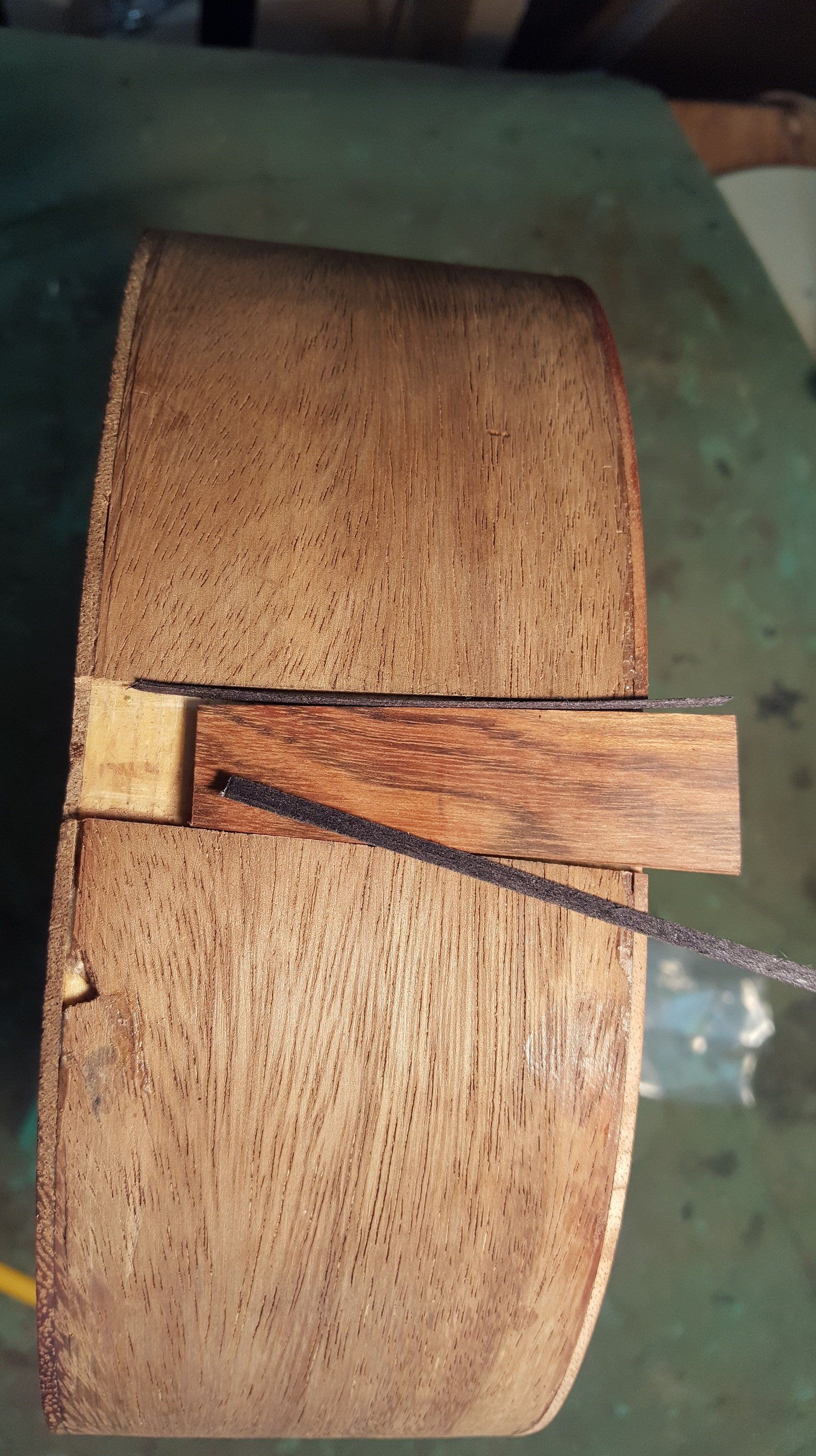

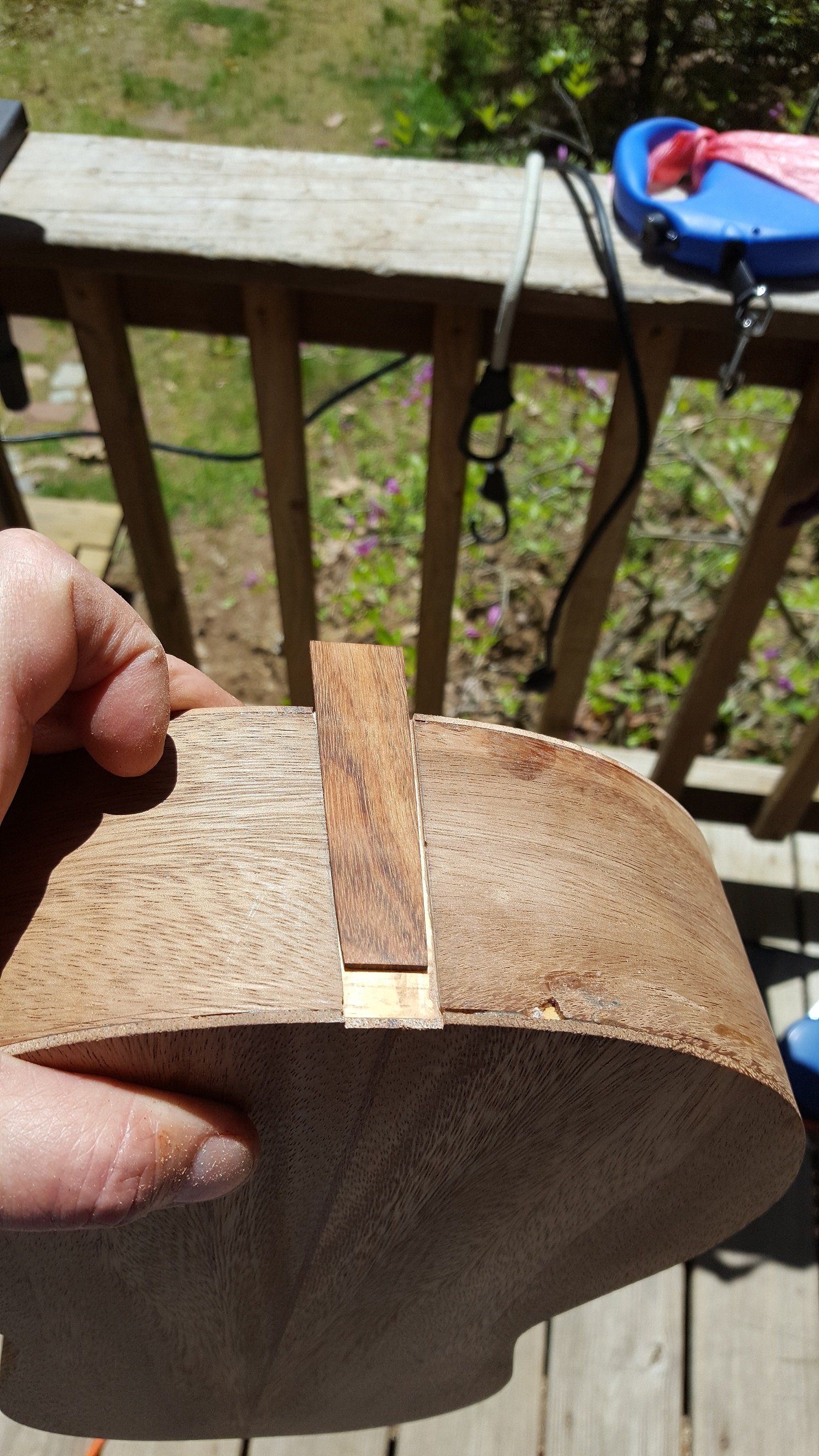

Installing the end graft

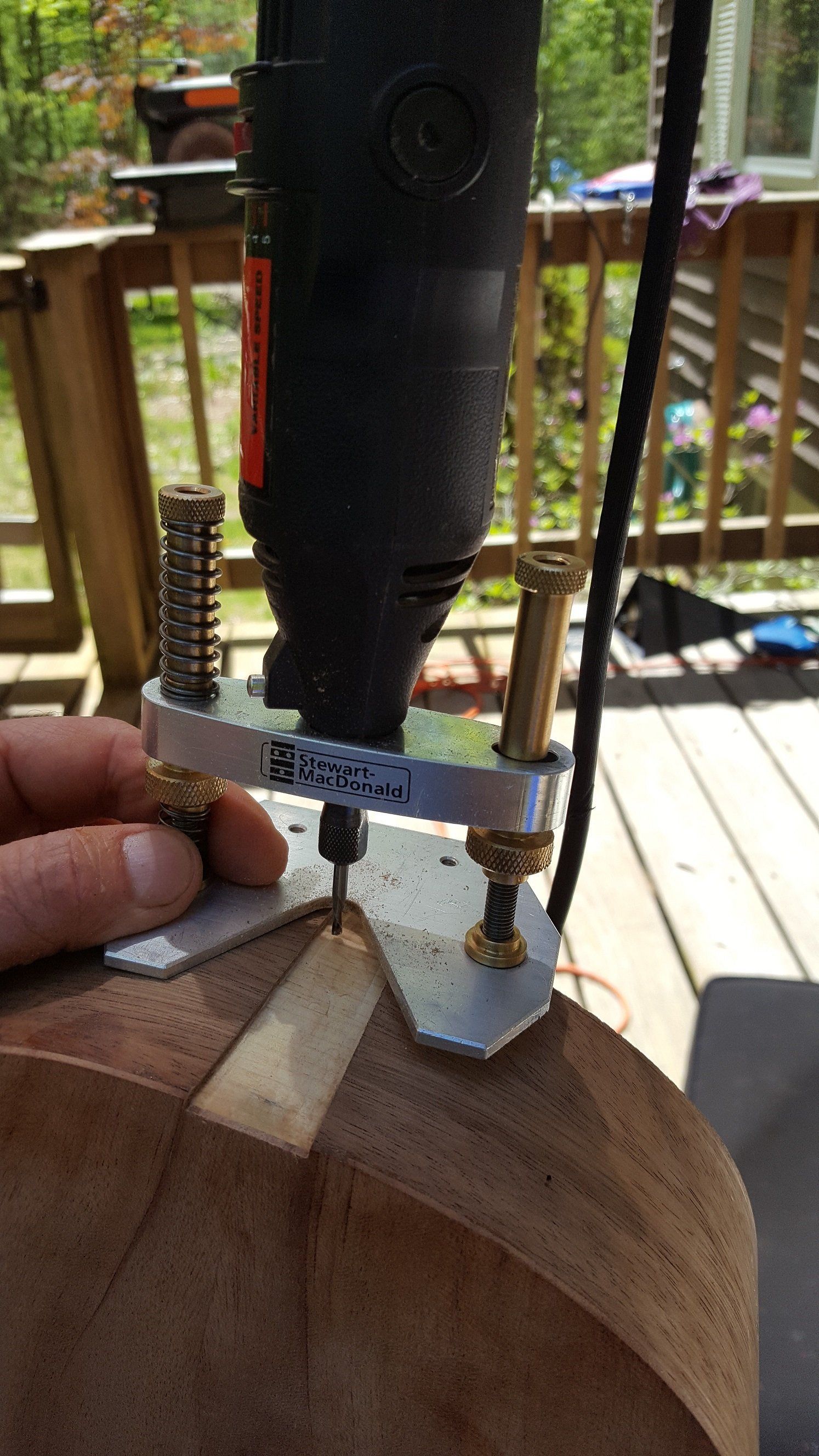

Routing the end graft channel

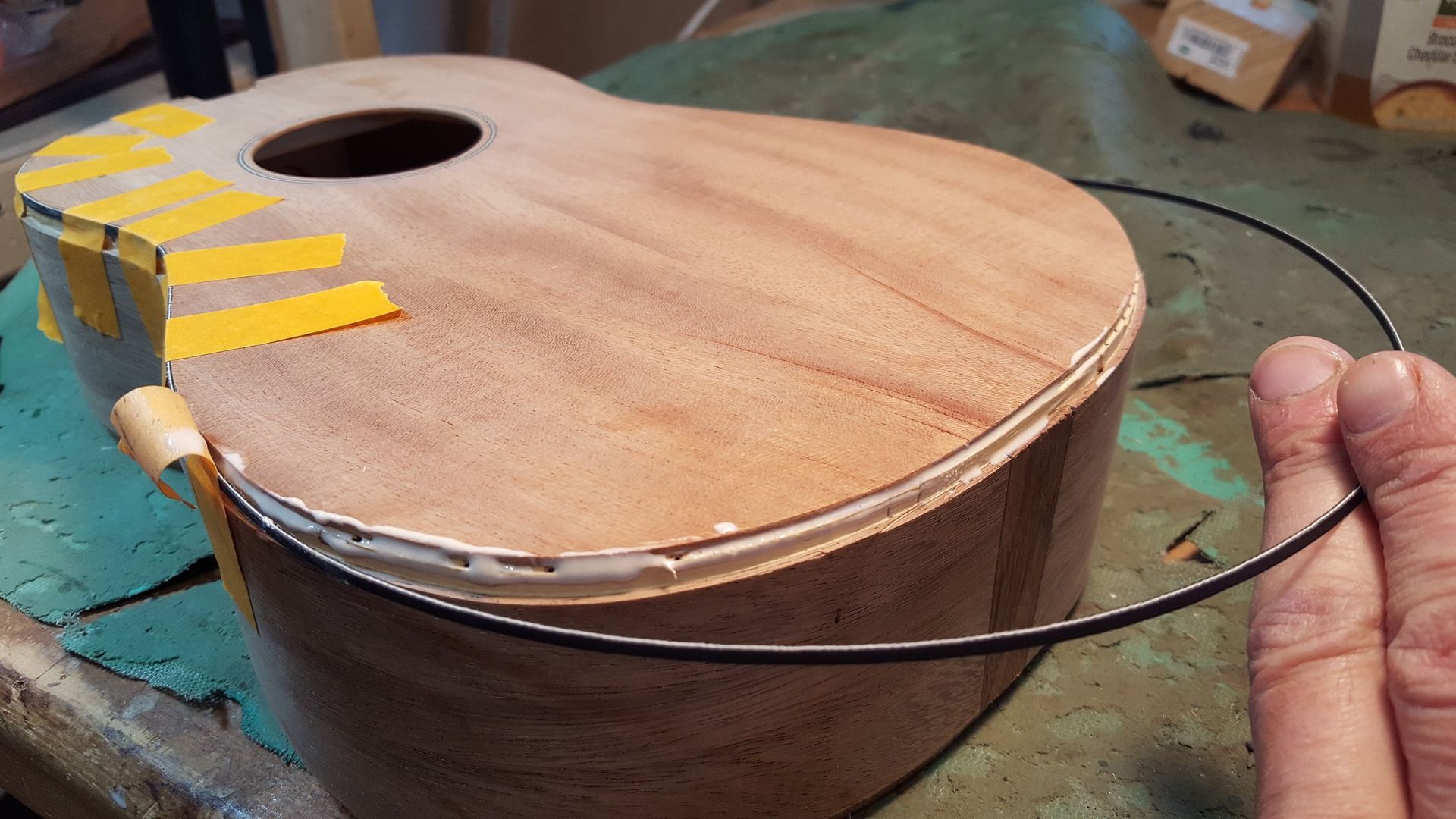

Binding channels routed. Installing the wood fiber purfling around the top

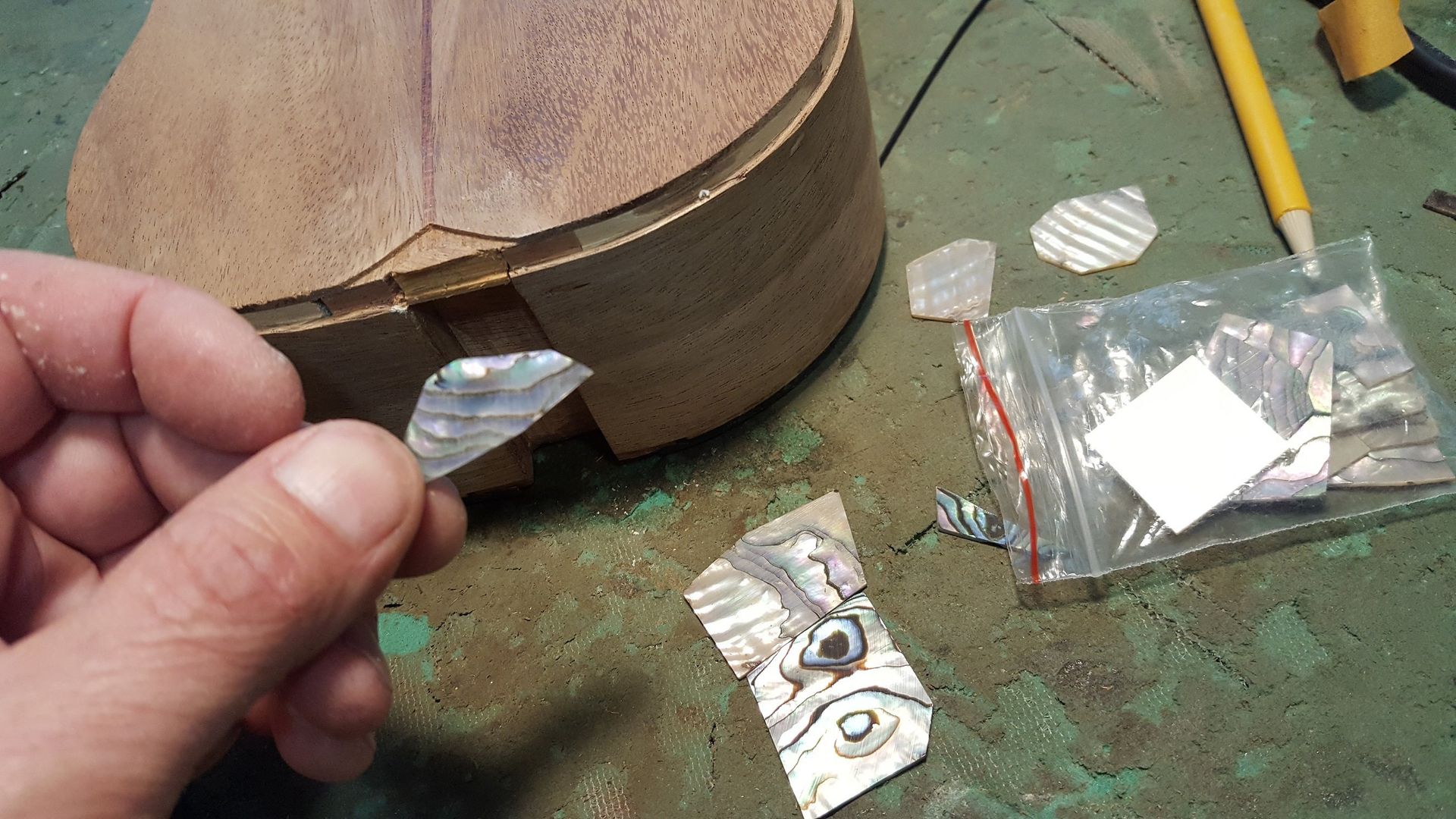

Abalone shell for some bling

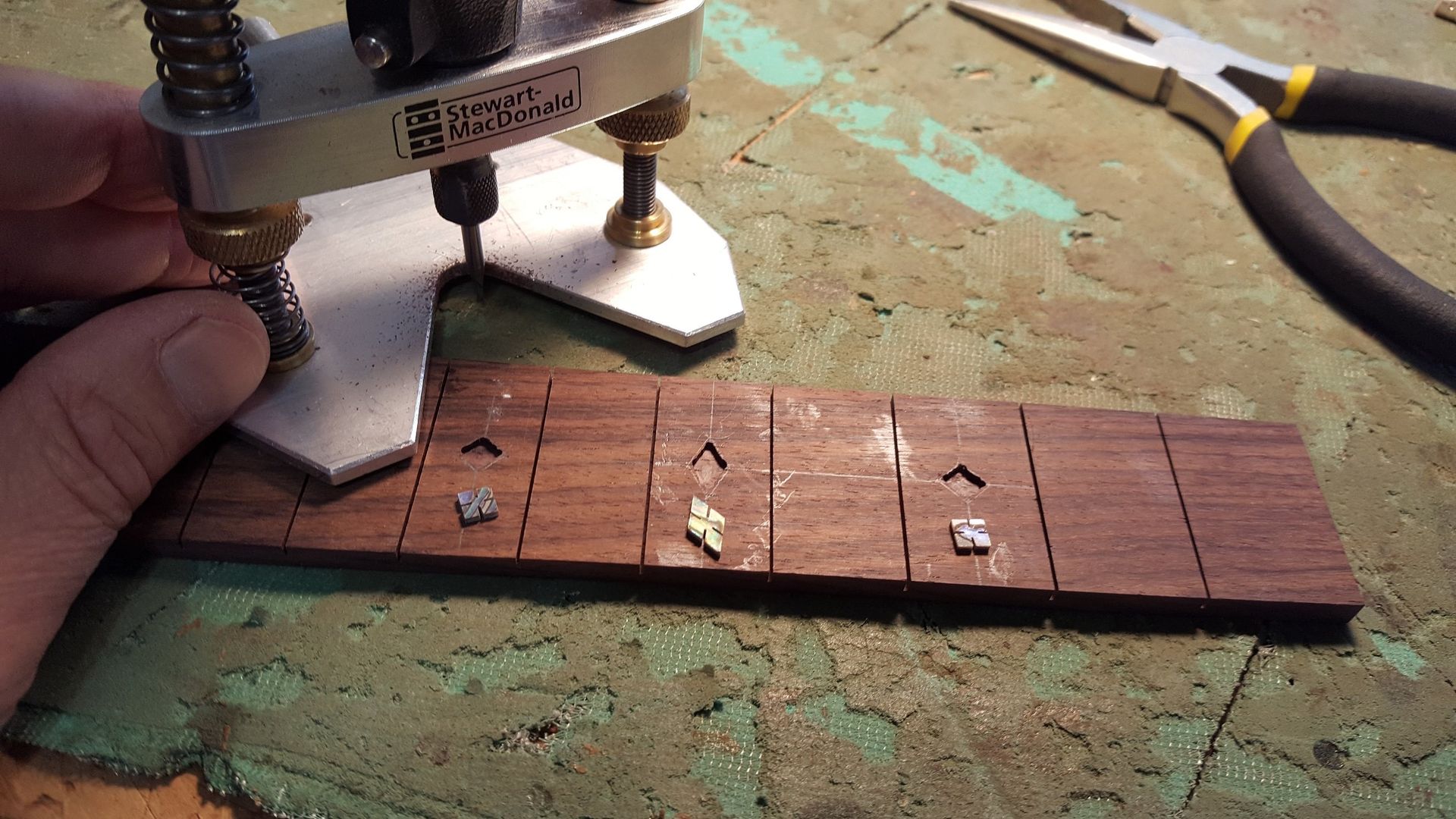

routing for the abalone fretboard markers

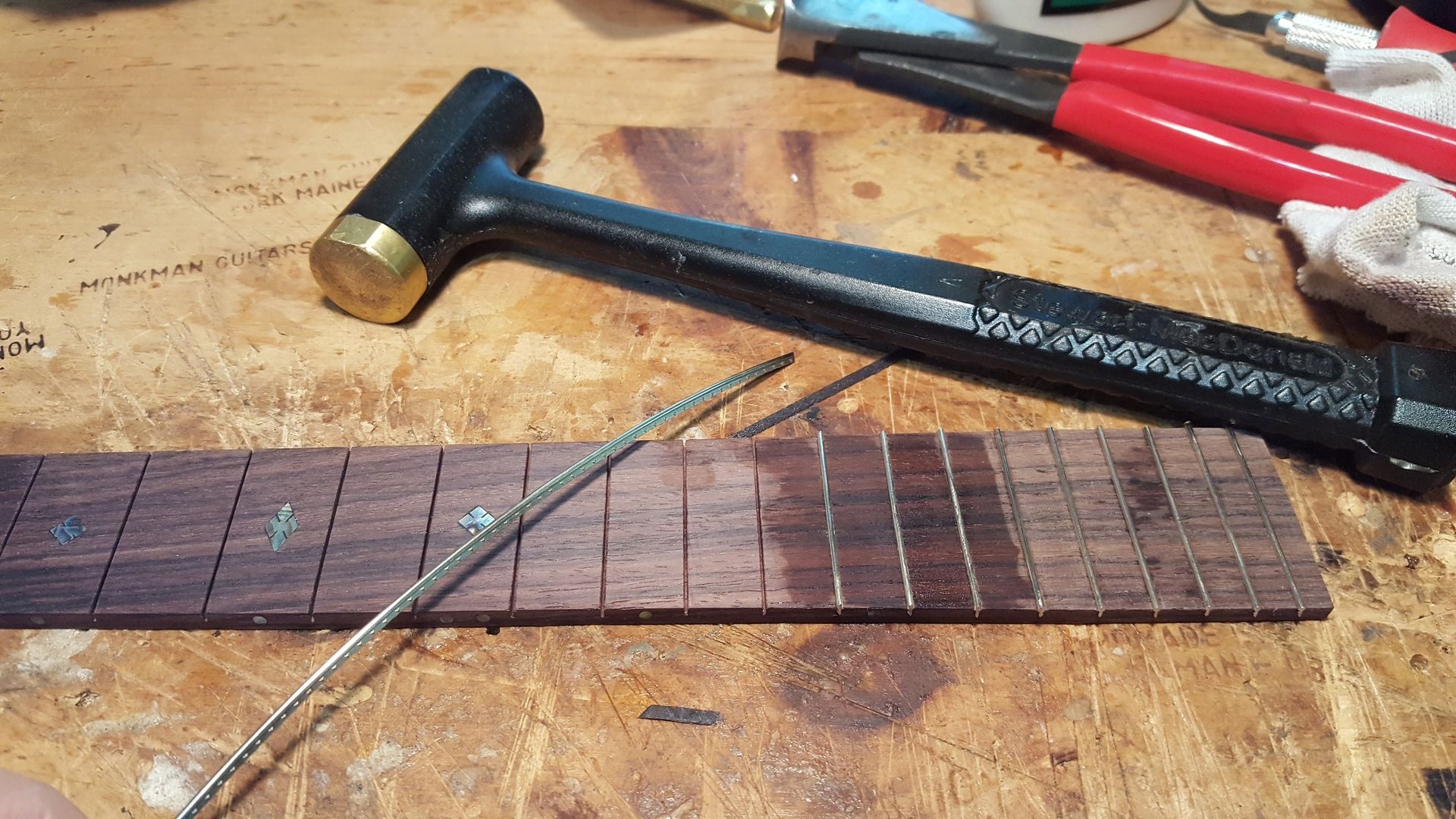

Installing the fretwire

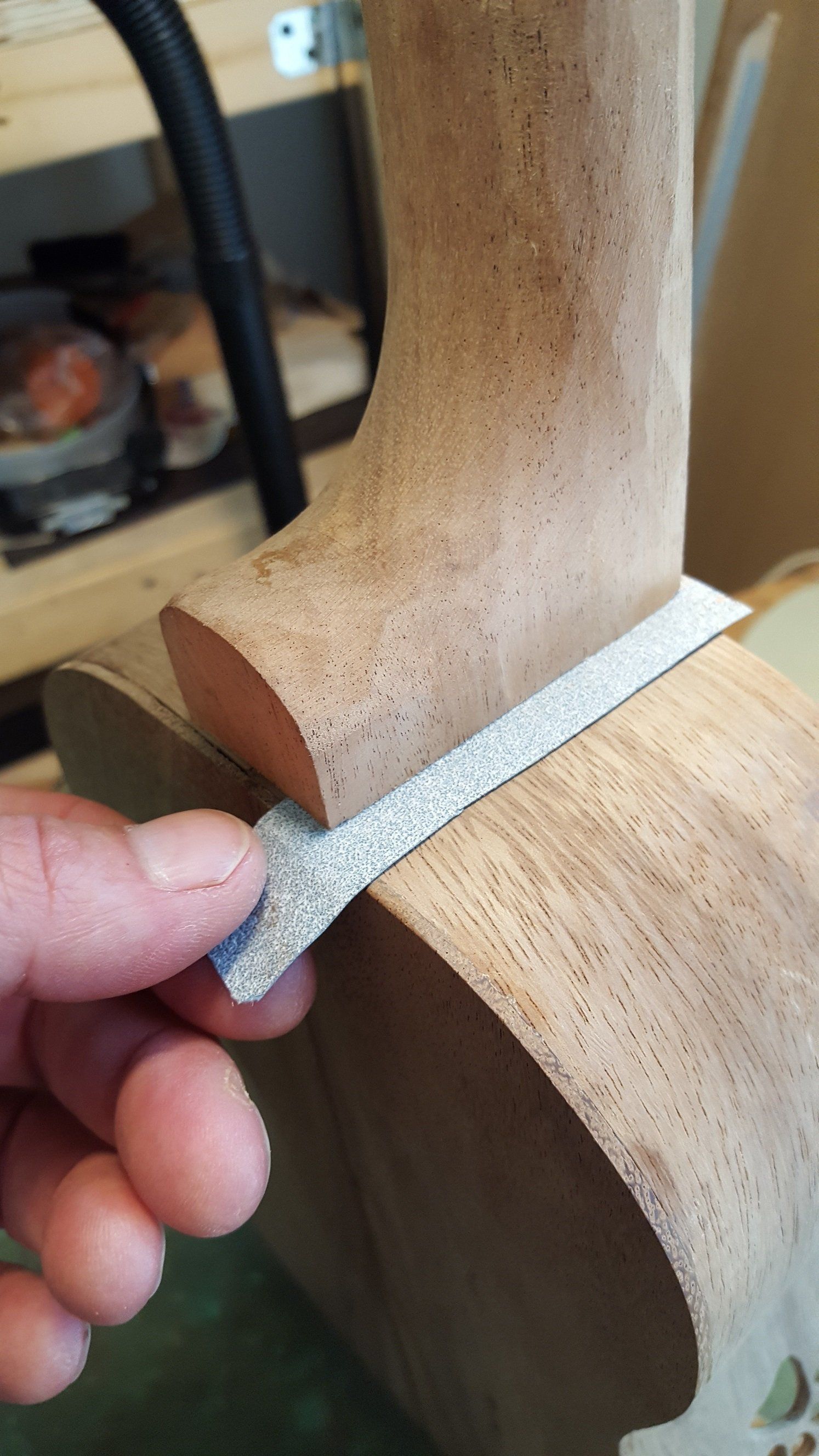

tightening up the neck to the body with sandpaper

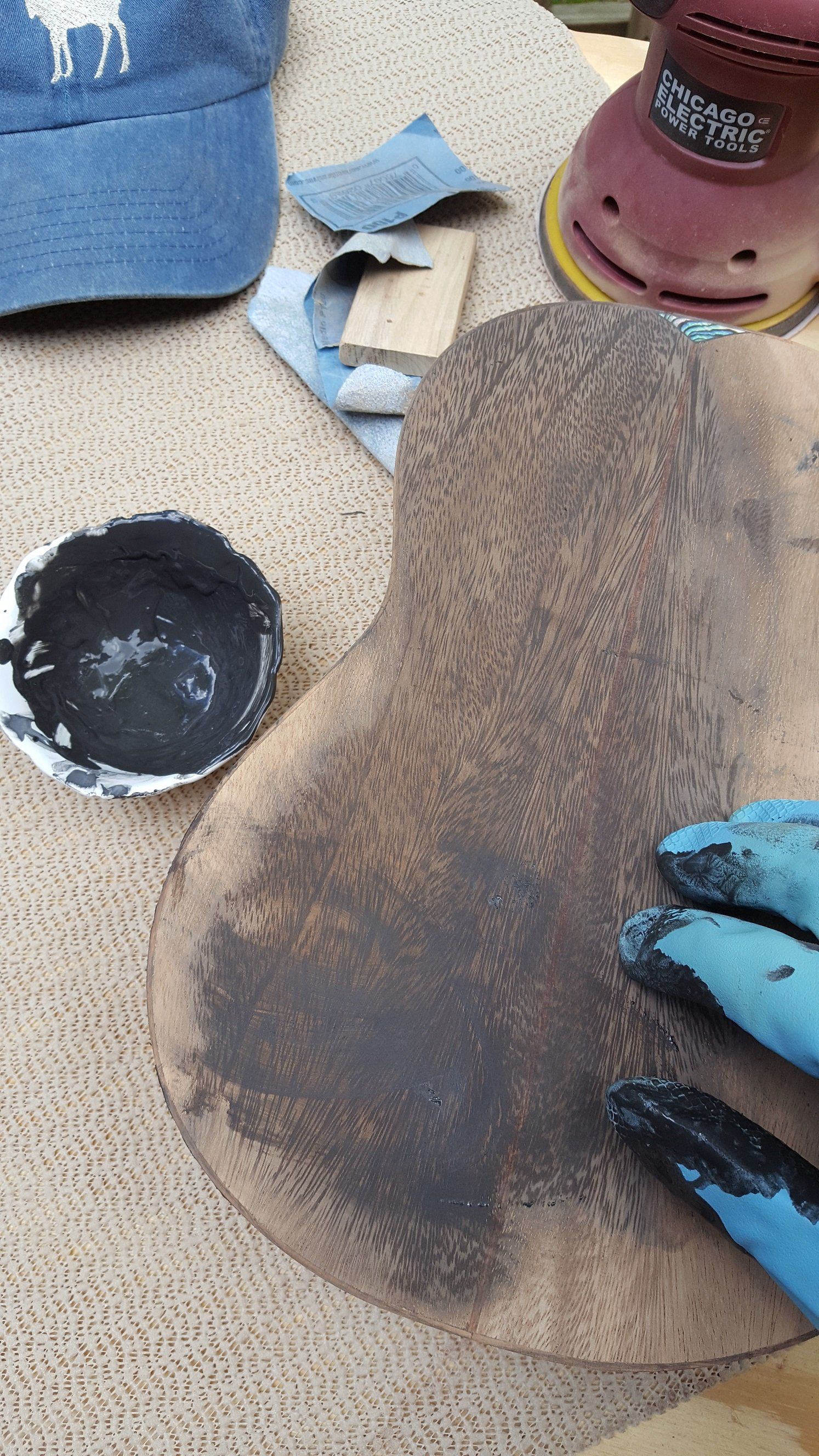

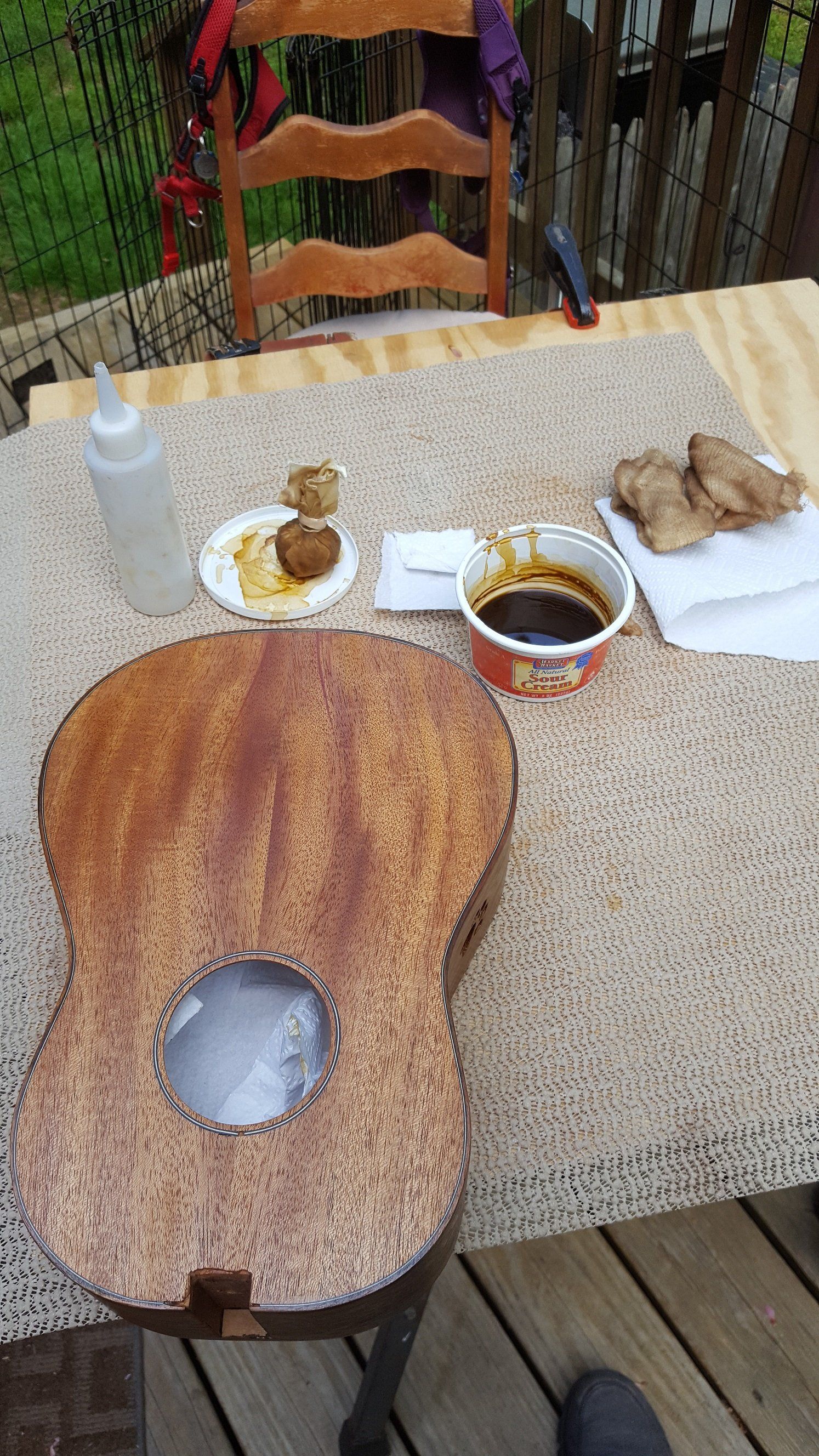

Filling the pores for a smoother finish

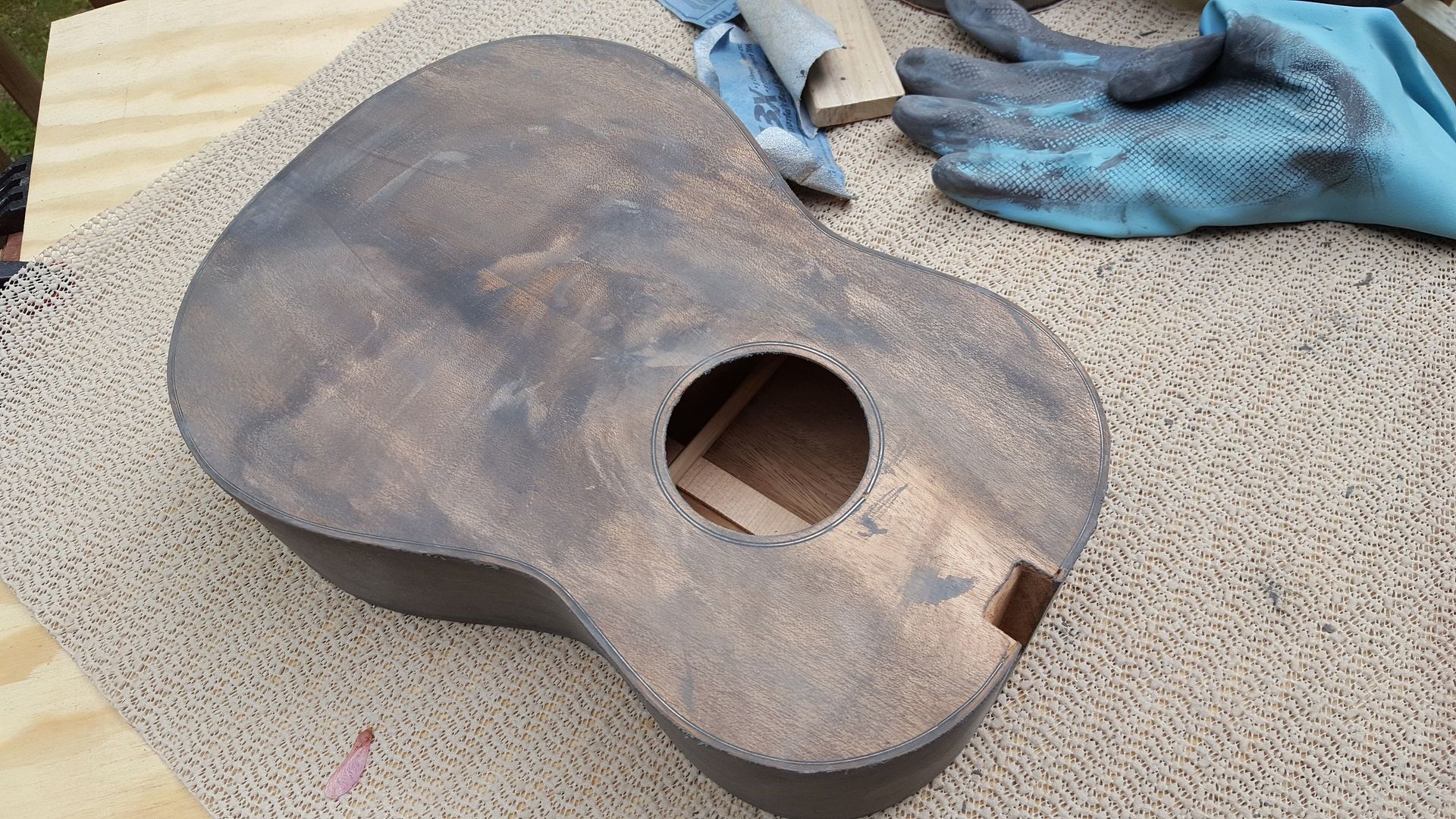

Pore filler on the top

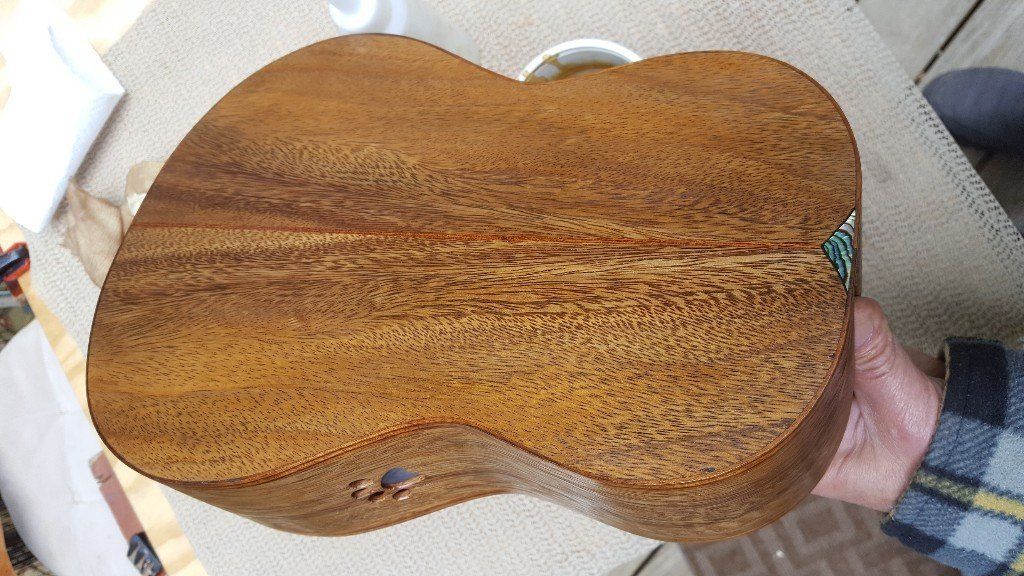

Lots of shellac

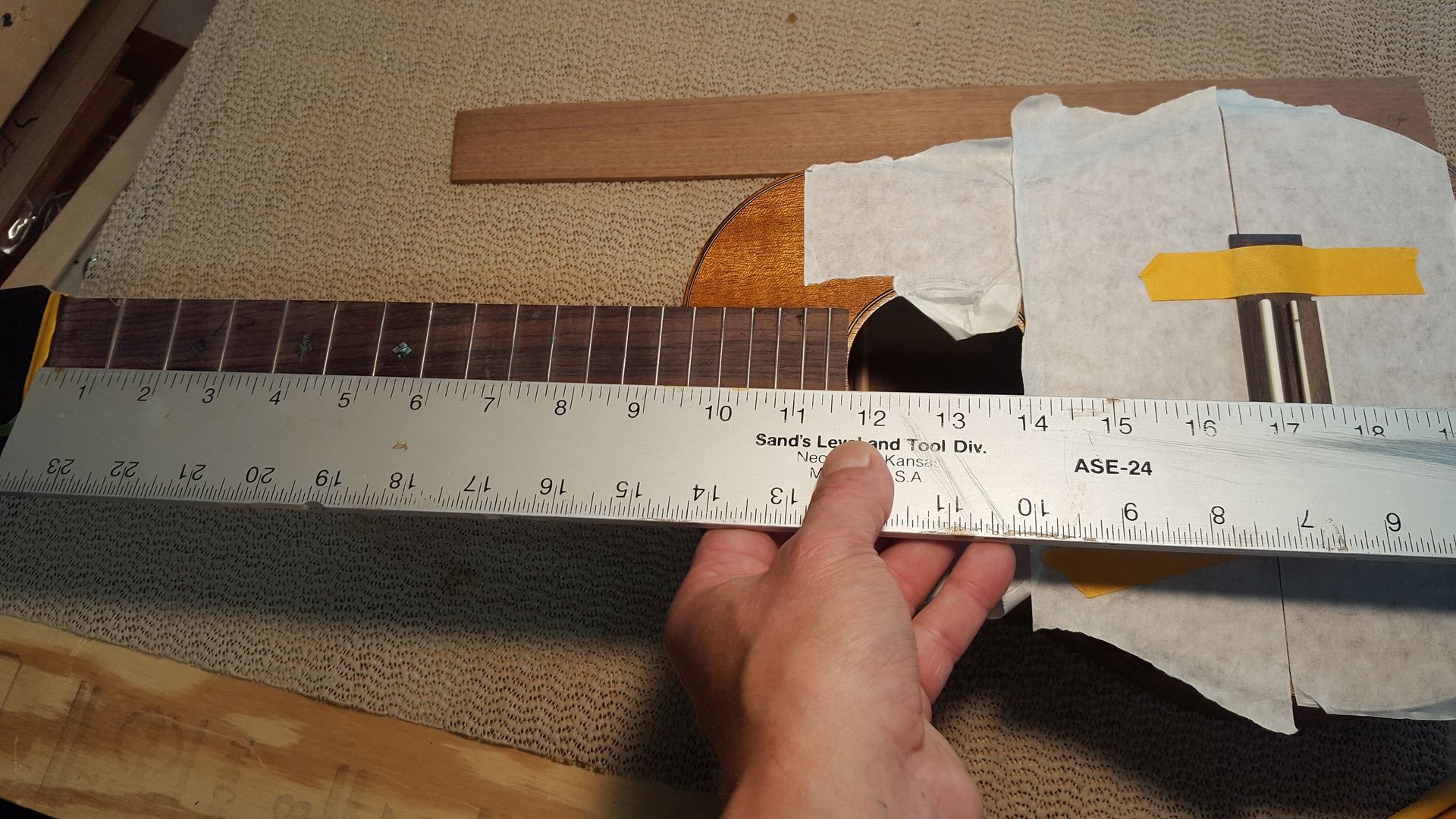

Locating where to put the bridge. The 12th fret is half way between the nut and the saddle on the bridge. Add about 1/8" for intonation.

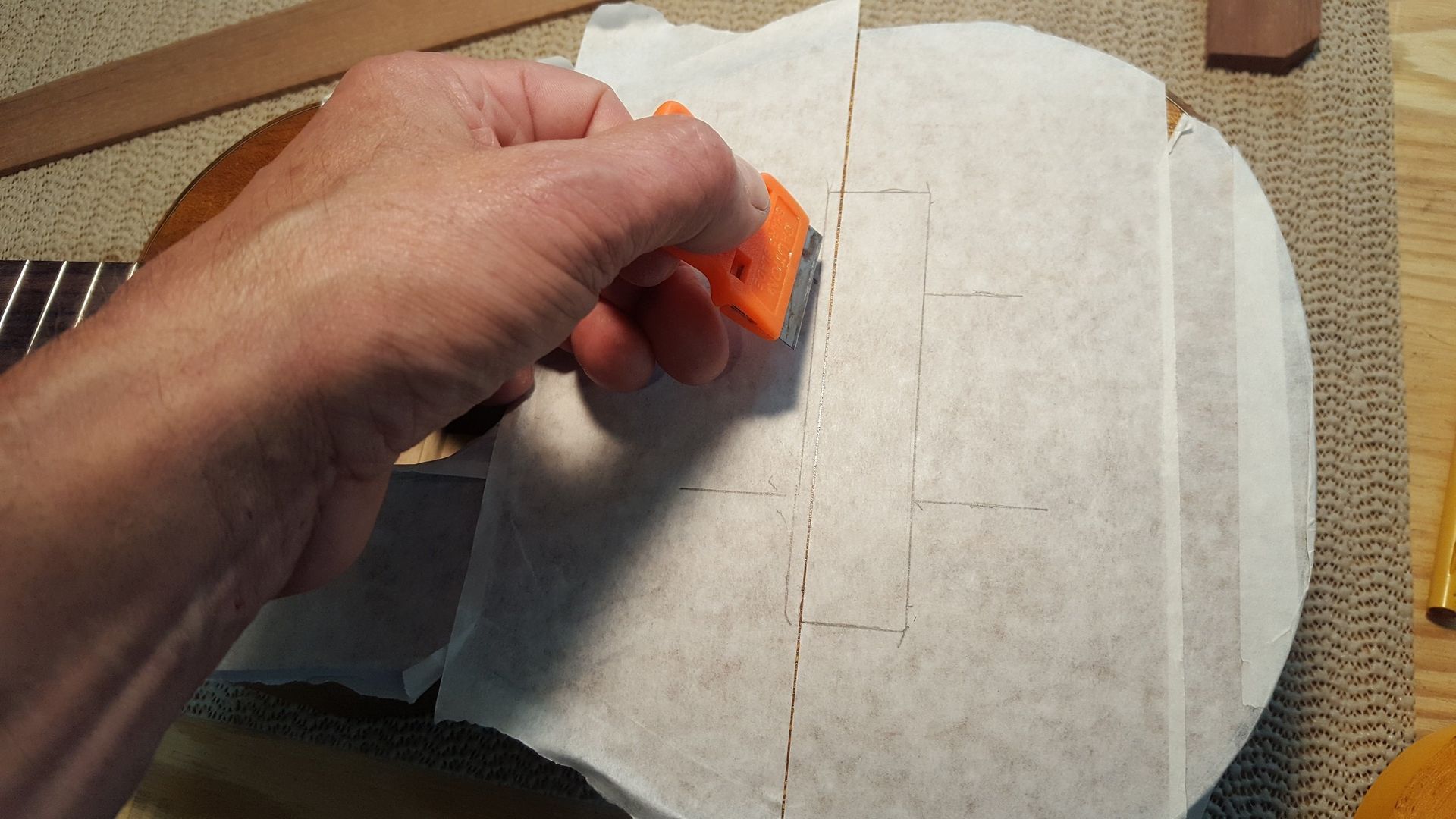

Taped off the top to remove the shellac finish from the bridge position for gluing.

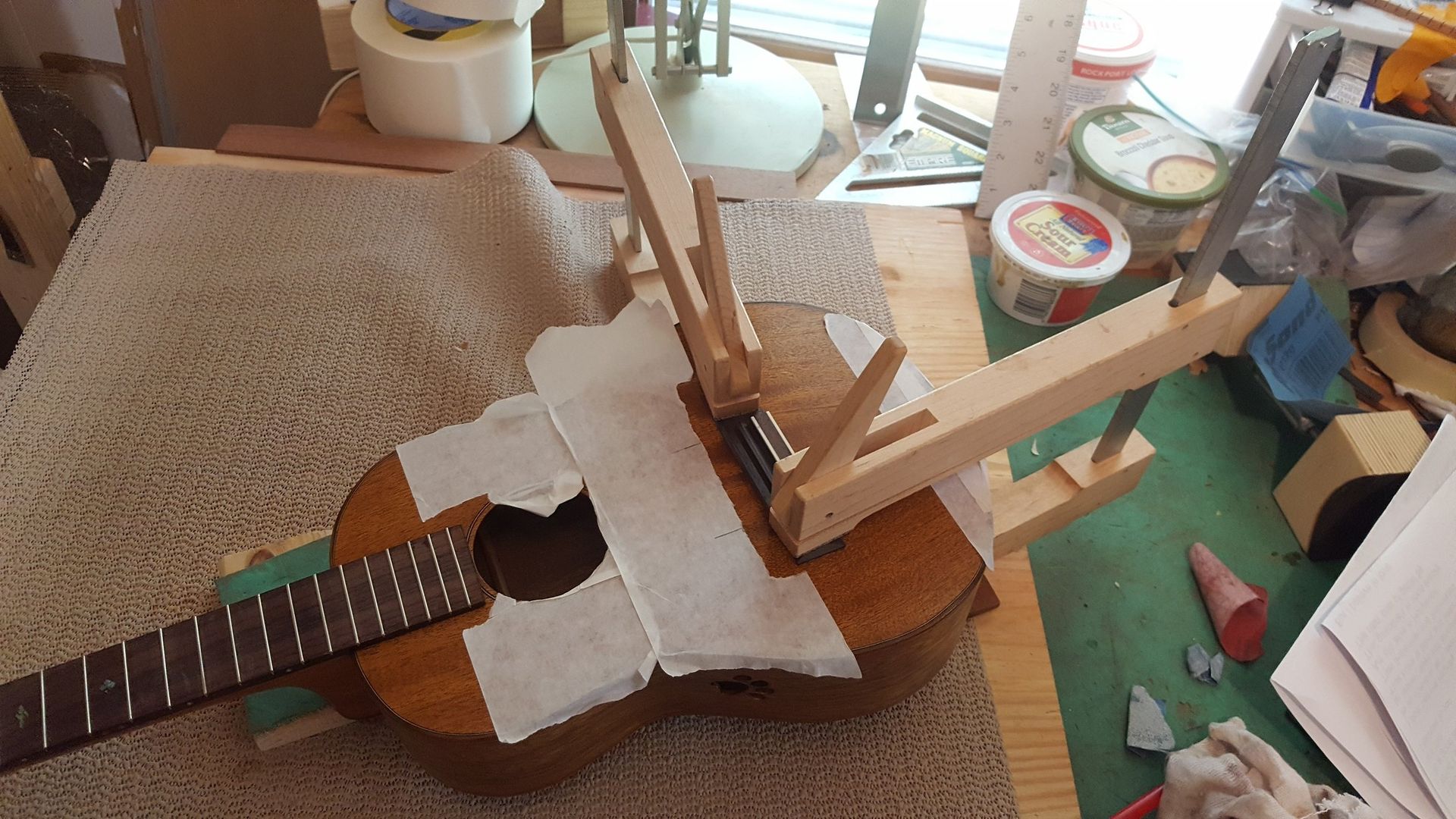

Gently clamped bridge. The hot hide glue open-time is just a few minutes. The bridge is heated under a heat lamp to extend the open-time. Hide glue shrinks as it dries and pulls the joint together. Full strength after only about 30 minutes.
After the bridge is attached. The frets are leveled with a steel sanding beam, then polished. Then a nut is made, tuners installed then some strings. Then a little fine tuning and she's ready to go.
view all

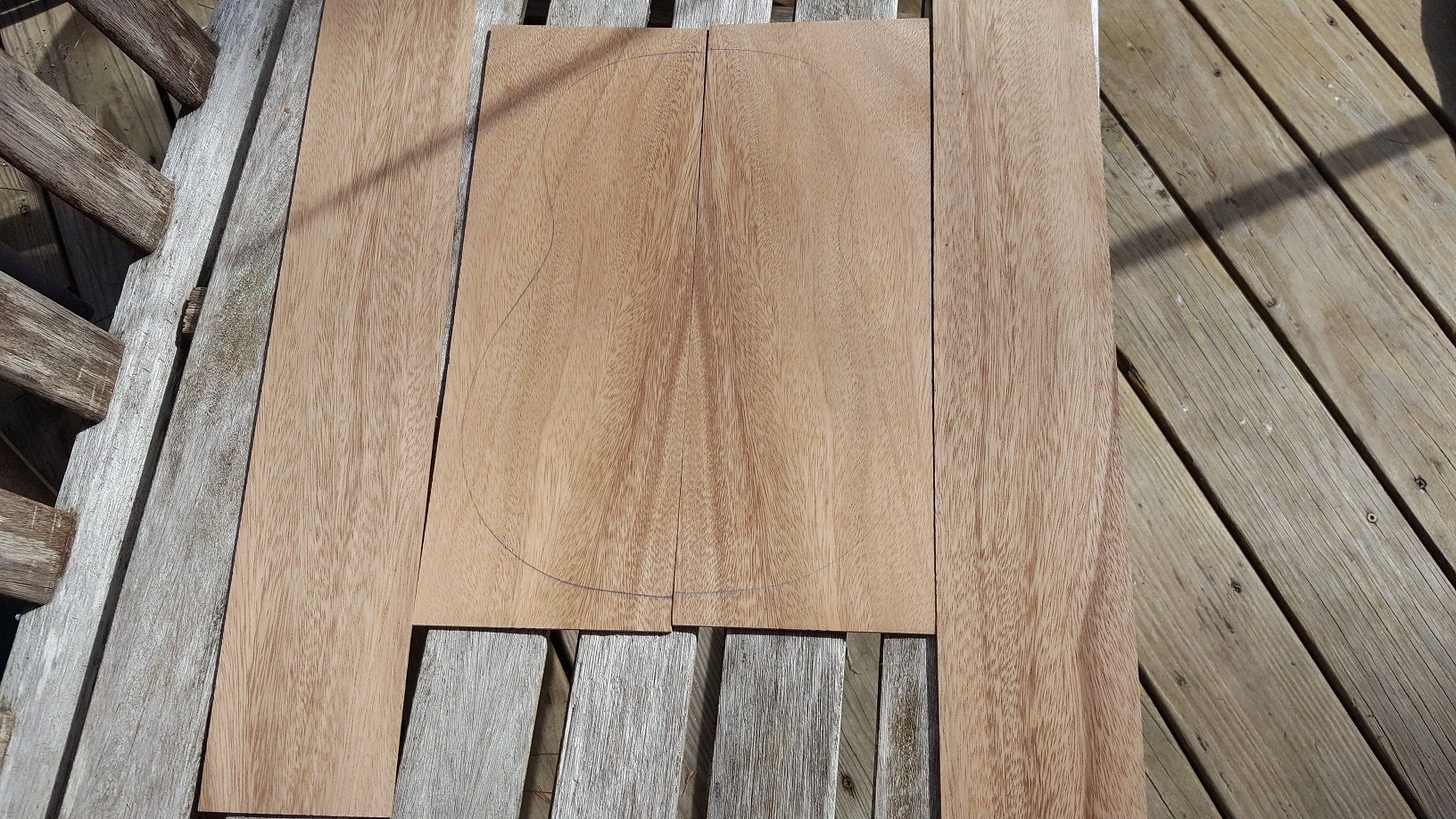

The raw wood was sent thru a planer. The top and back are about .075" thick. Sides are a little less than that.

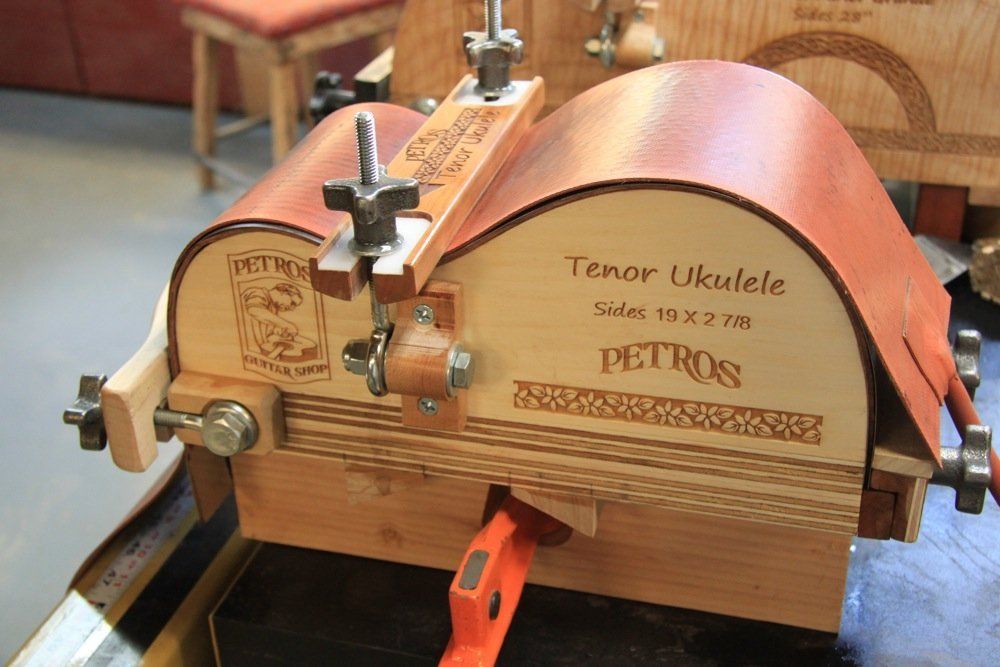

The sides are bent on a jig with a heat blanket. I didn't get any pics but it looks something like this.
